Extremely strong and invisible Dimensions of recesses should be taken directly from the fittings Use #6 flat head screw to install plate & Use #10 pan head screw for keyhole

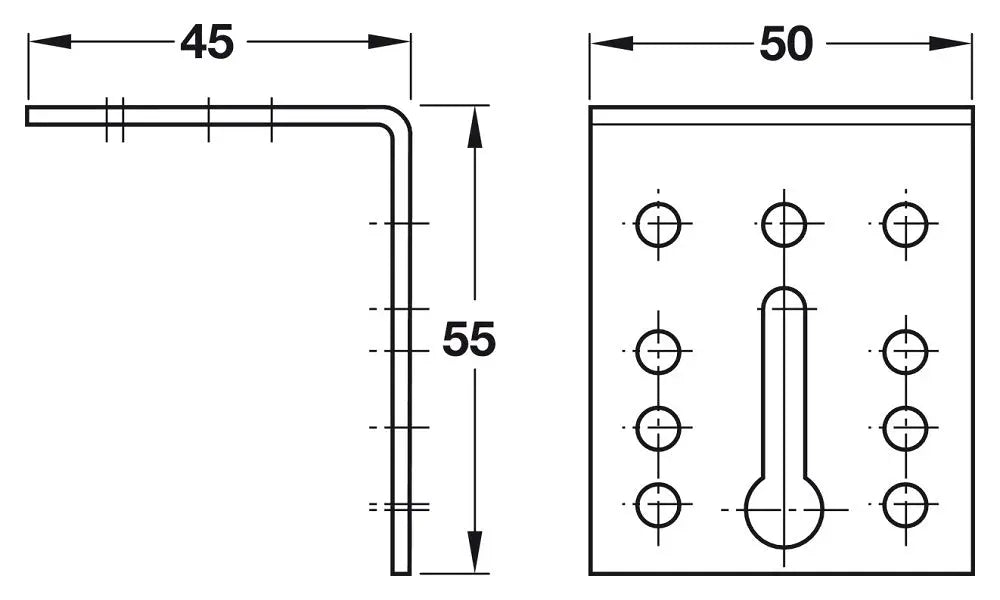

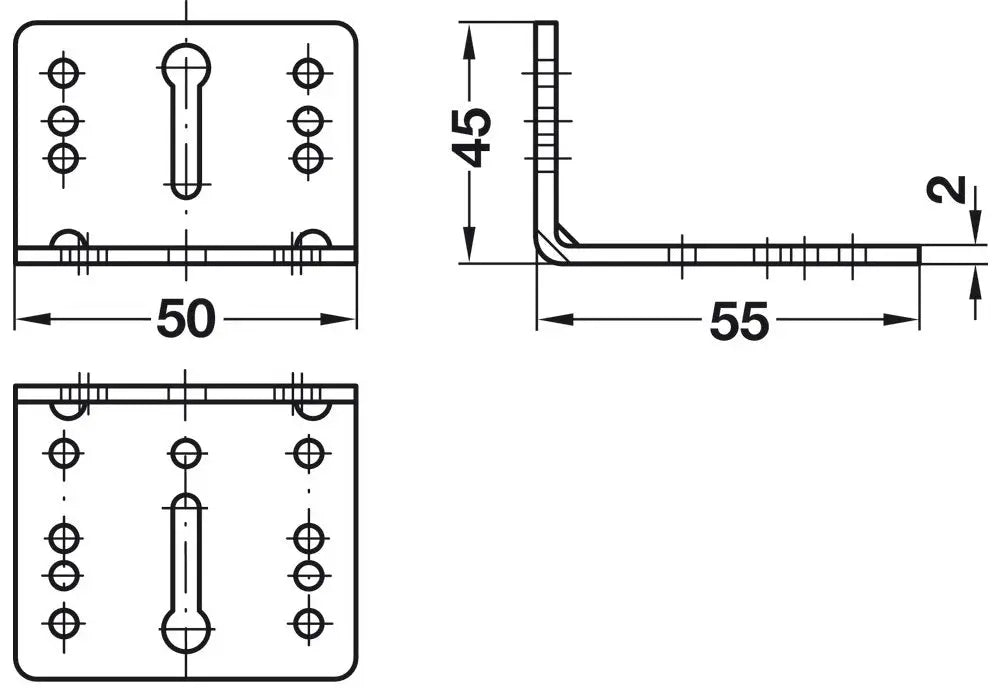

Material: Steel Screw holes: With 2 horizontal slots and additional screw holes Leg length: 55 / 45 mm Width: 50 mm Material thickness: 2 mm

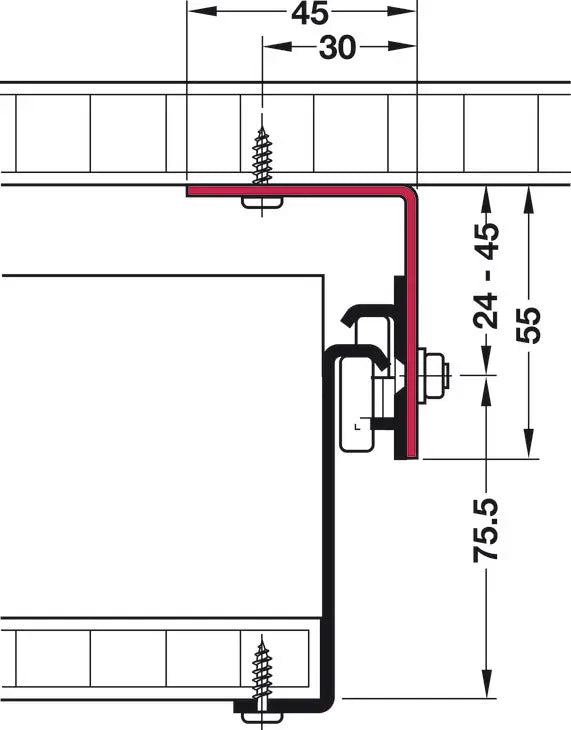

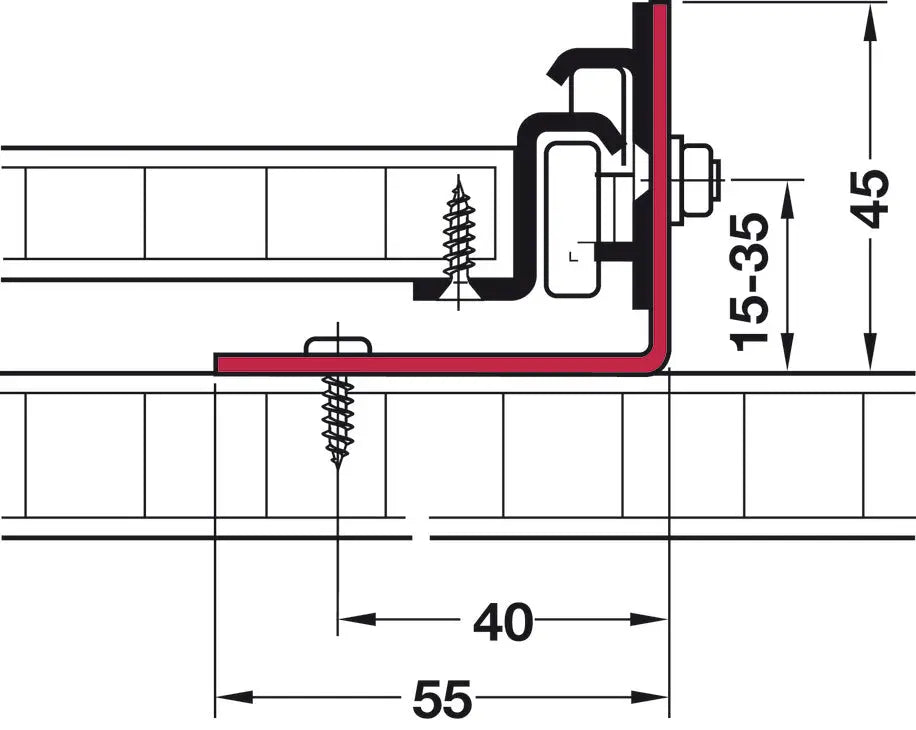

Area of application: For fixing the carcase rail without an existing side panel or for use as a universal connection bracket Installation: For screw fixing to base and carcase rail with countersunk head screws M4x10 mm, hexagonal nut, and lock washer
