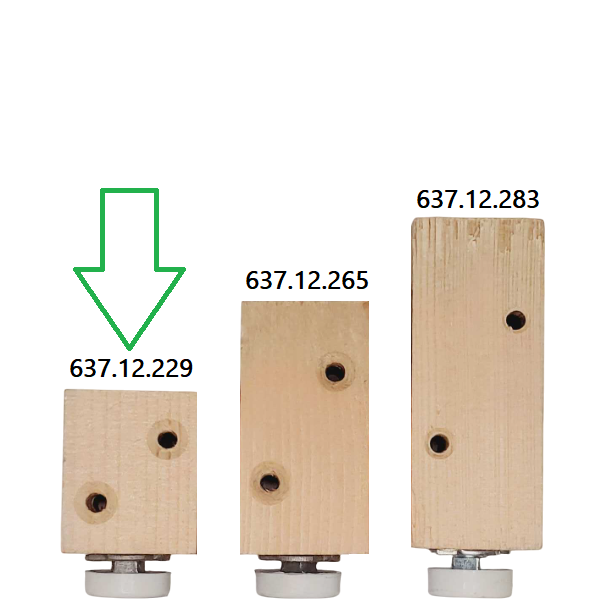

637.12.229 Plinth Adjusting Fitting, M8 Thread, with Wood Mounting Block

Installation height 55 mm, screw length 35 mm
50 kg if only side mounted
250 kg if top and side mounted

Material
Mounting block: Wood
Screw: Steel, Cap: Plastic

Color/finish
Cap: White, Screw: zinc plated, Screw: Bright

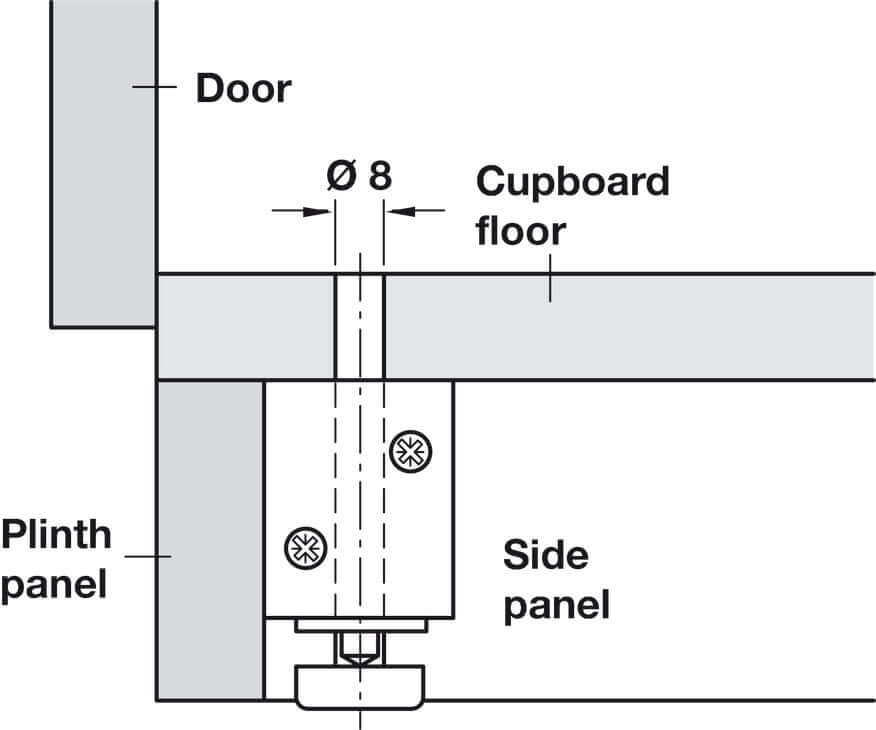

Adjustment facility: From above through Ø 8 mm aperture in cupboard floor and from below with SW 8 open-wrenched wrench

Drive: PZ2 cross slot at top, at bottom with square socket key SW8
