Steel shelf support features a 5mm Outside Diameter Pin Weight Bearing Capacity: 175 lbs. (Always consider the capacity of all components of your shelving) The steel pin features a bright nickel-plated finish. It is packaged with 25 pins per package.

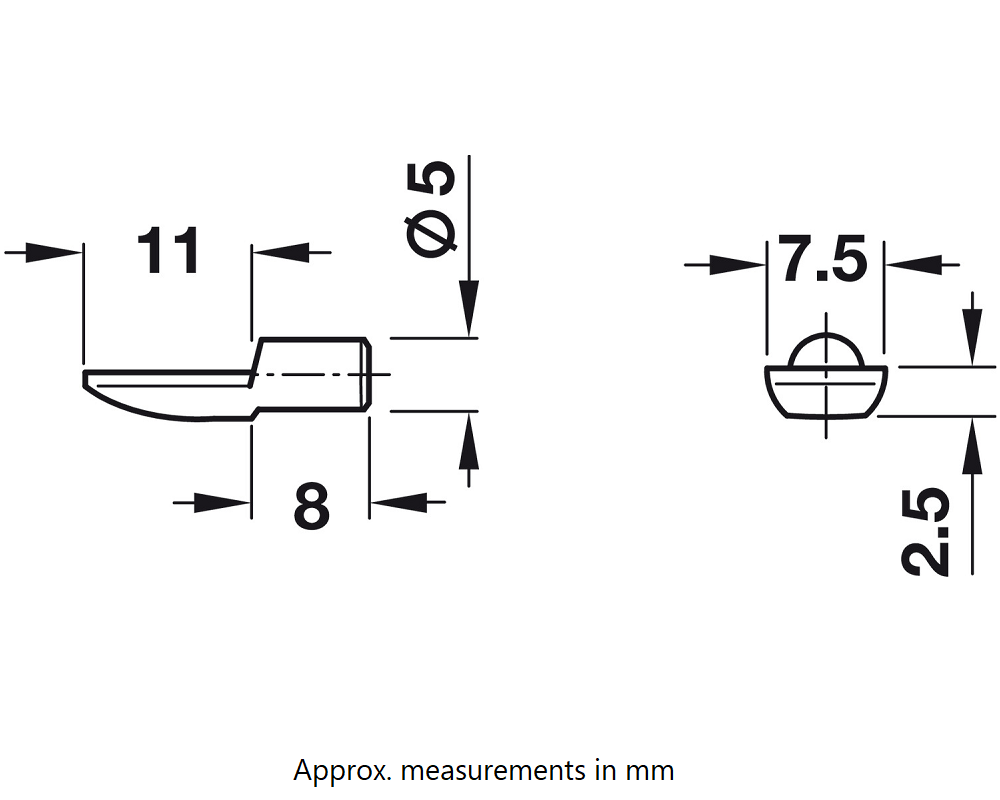

Area of application: for wooden shelves For drill hole Ø: 5.00 mm Pin length: 8.00 mm Version: ANSI/BHMA A156, Section 4.8.2, Test 7 Material: Steel Load bearing capacity with 4 shelf supports 80 kg (175 lbs) Installation: For insert fitting
