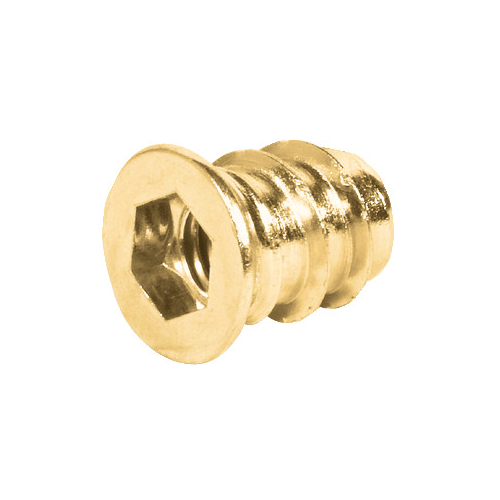

Steel Screw-In Sleeve Socket with Rim, Hex Head, M6 Thread

$9.65

Size

Set of 10 Set of 25

Steel Screw-In Sleeve Socket with Rim, Hex Head, M6 Thread

$9.65

Size

Set of 10 Set of 25
Product description

Threaded inserts or sleeve sockets are handy if you're making furniture that needs to be taken apart at a later date. The threaded insert nut is screwed into a pilot hole in the wood and can then be used with a machine screw to take the item apart as many times as you like. Commonly used to join panels together, such as cabinets, bookcases, and other furniture fixtures. These can often be lost when moving as well as missing when buying secondhand furniture.

Yellow Chromatized Steel
Hexagon Socket Drive

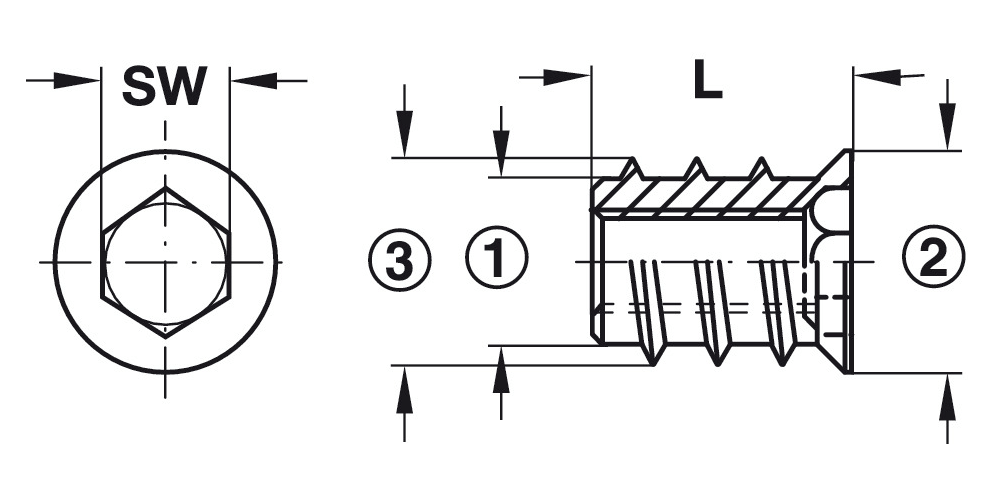

Length: 15 mm
Internal Thread: M6
(3) External Thread Ø mm: 10
(1) Body Ø mm: 7.5
(2) Head Ø mm: 12
Hexagon Socket: SW6





Socket, Steel, with Hex Head
M6 thread, 15 mm, Ø8
Item no. 030.10.564
